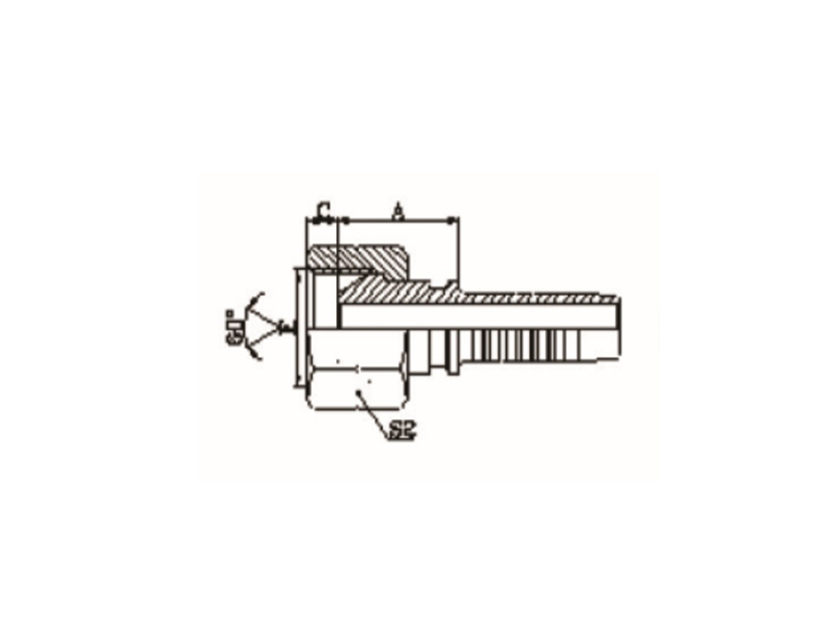

碳钢整体锻压成型，表面镀锌防锈；采用**BSPP 英制平行内螺纹**，接头端头 60° 外锥金属硬密封，与配套 60° 内锥油口 / 接头贴合锁紧实现密封，无需 O 型圈 。
| 代 号 PART NO. | 管子外径D | 软 管 | 尺 寸 | ||||
|---|---|---|---|---|---|---|---|
| 编织 BRAIDED | 缠绕 SPIRAL | 公称内径 DN | 标 号 DASH | A | C | S2 | |
| 22611-02-03 | -- | G1/8" X28 | 5 | 03 | 15 | 5.5 | 14 |
| 22611-02-04 | -- | G1/8" X28 | 6 | 04 | 17.5 | 5.5 | 14 |
| 22611-04-03 | -- | G1/4" X19 | 5 | 03 | 17 | 5.5 | 19 |
| 22611-04-04 | -- | G1/4" X19 | 6 | 04 | 19 | 5.5 | 19 |
| 22611-04-05 | -- | G1/4" X19 | 8 | 05 | 19 | 5.5 | 19 |
| 22611-04-06 | -- | G1/4" X19 | 10 | 06 | 19 | 5.5 | 19 |
| 22611-06-04 | -- | G3/8" X19 | 6 | 04 | 21 | 6.3 | 22 |
| 22611-06-05 | -- | G3/8" X19 | 8 | 05 | 21 | 6.3 | 22 |
| 22611-06-06 | -- | G3/8" X19 | 10 | 06 | 21 | 6.3 | 22 |
| 22611-06-08 | 22612-06-08 | G3/8" X19 | 12 | 08 | 21.5 | 6.3 | 22 |
| 22611-08-06T | 22612-08-06T | G1/2" X14 | 10 | 06 | 21 | 7.5 | 27 |
| 22611-08-08 | 22612-08-08 | G1/2" X14 | 12 | 08 | 23 | 7.5 | 27 |
| 22611-10-08 | 22612-10-08 | G5/8" X14 | 12 | 08 | 23.5 | 9.5 | 30 |
| 22611-10-10 | 22612-10-10 | G5/8" X14 | 16 | 10 | 24.5 | 9.5 | 30 |
| 22611-12-08T | 22612-12-08T | G3/4" X14 | 12 | 08 | 22 | 10.9 | 32 |
| 22611-12-10 | 22612-12-10 | G3/4" X14 | 16 | 10 | 24.5 | 10.9 | 32 |
| 22611-12-12 | 22612-12-12 | G3/4" X14 | 20 | 12 | 24.5 | 10.9 | 32 |
| 22611-16-12T | 22612-16-12T | G1" X11 | 20 | 12 | 24 | 11.7 | 41 |
| 22611-16-14 | 22612-16-14 | G1" X11 | 22 | 14 | 26 | 11.7 | 41 |
| 22611-16-16 | 22612-16-16 | G1" X11 | 25 | 16 | 27.5 | 11.7 | 41 |
| 22611-20-16T | 22612-20-16T | G1.1/4" X11 | 25 | 16 | 27.5 | 11 | 50 |
| 22611-20-20W | 22612-20-20W | G1.1/4" X11 | 32 | 20 | 30.5 | 11 | 50 |
| 22611-24-20T | 22612-24-20T | G1.1/2" X11 | 32 | 20 | 32 | 13 | 55 |
| 22611-24-24W | 22612-24-24W | G1.1/2" X11 | 40 | 24 | 32 | 13 | 55 |
| 22611-32-24T | 22612-32-24T | G2" X11 | 40 | 24 | 30 | 16 | 65 |
| 22611-32-32W | 22612-32-32W | G2" X11 | 50 | 32 | 31.9 | 16 | 70 |
