符合国际标准 ISO 12151-1、SAE J516，整体锻压碳钢镀锌防腐；美制 UNF 内螺纹，端面平面密封槽搭配 O 形圈，平面压紧实现软硬复合密封，可抵消装配微小错位，高压抗震不易渗漏；配套重载加厚套筒，适配多层钢丝缠绕高压胶管，扣压咬合牢固，抗拔脱、耐高频高压脉冲，长期重载工况稳定不漏油。

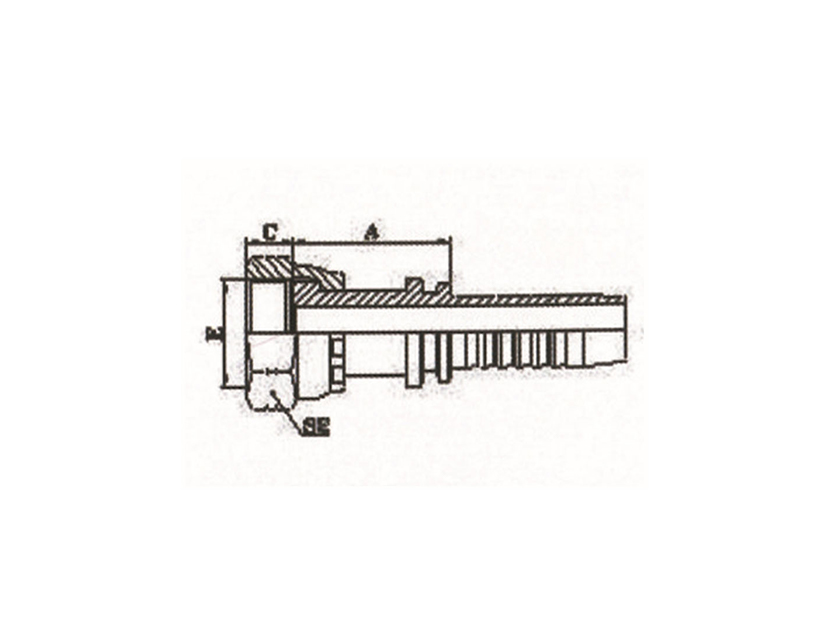

| 代 号 PART NO. | 螺纹E THREAD E | 软 管 HOSE BORE | 尺 寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| 公称内径 DN | 标 号 DASH | A | C | S2 | ||
| 26791-04-03 | 7/16" X20 | 5 | 03 | 14.5 | 9 | 15 |
| 26791-04-04 | 7/16" X20 | 6 | 04 | 15 | 9 | 15 |
| 26791-05-04 | 1/2" X20 | 6 | 04 | 16 | 9.5 | 17 |
| 26791-05-05 | 1/2" X20 | 8 | 05 | 16 | 9.5 | 17 |
| 26791-05-06 | 1/2" X20 | 10 | 06 | 16.5 | 9.5 | 17 |
| 26791-06-04 | 9/16" X18 | 6 | 04 | 16.5 | 10.5 | 19 |
| 26791-06-05 | 9/16" X18 | 8 | 05 | 16 | 10.5 | 19 |
| 26791-06-06 | 9/16" X18 | 10 | 06 | 16.5 | 10.5 | 19 |
| 26791-06-08 | 9/16" X18 | 12 | 08 | 16 | 10.5 | 19 |
| 26791-08-06 | 3/4" X16 | 10 | 06 | 18 | 11 | 24 |
| 26791-08-08 | 3/4" X16 | 12 | 08 | 18.5 | 11 | 24 |
| 26791-08-10 | 3/4" X16 | 16 | 10 | 19.5 | 11 | 24 |
| 26791-10-08 | 7/8" X14 | 12 | 08 | 19.5 | 13 | 27 |
| 26791-10-10 | 7/8" X14 | 16 | 10 | 20.5 | 13 | 27 |
| 26791-10-12 | 7/8" X14 | 20 | 12 | 20 | 13 | 27 |
| 26791-12-08T | 1.1/16" X12 | 12 | 08 | 19 | 15 | 32 |
| 26791-12-10 | 1.1/16" X12 | 16 | 10 | 21.5 | 15 | 32 |
| 26791-12-12 | 1.1/16" X12 | 20 | 12 | 21.5 | 15 | 32 |
| 26791-12-16 | 1.1/16" X12 | 25 | 16 | 23.5 | 15 | 32 |
| 26791-14-12 | 1.3/16" X12 | 20 | 12 | 21.5 | 15 | 36 |
| 26791-16-12T | 1.5/16" X12 | 20 | 12 | 18.5 | 16 | 41 |
| 26791-16-16 | 1.5/16" X12 | 25 | 16 | 24.5 | 16 | 41 |
| 26791-16-20 | 1.5/16" X12 | 32 | 20 | 24 | 16 | 41 |
| 26791-20-16T | 1.5/8" X12 | 25 | 16 | 23 | 17 | 50 |
| 26791-20-20W | 1.5/8" X12 | 32 | 20 | 26 | 17 | 50 |
| 26791-24-20W | 1.7/8" X12 | 32 | 20 | 26.5 | 20 | 55 |
| 26791-24-24W | 1.7/8" X12 | 40 | 24 | 26.5 | 20 | 55 |
| 26791-32-24T | 2.1/2" X12 | 40 | 24 | 27 | 23.5 | 75 |
| 26791-32-32T | 2.1/2" X12 | 50 | 32 | 27 | 23.5 | 75 |
