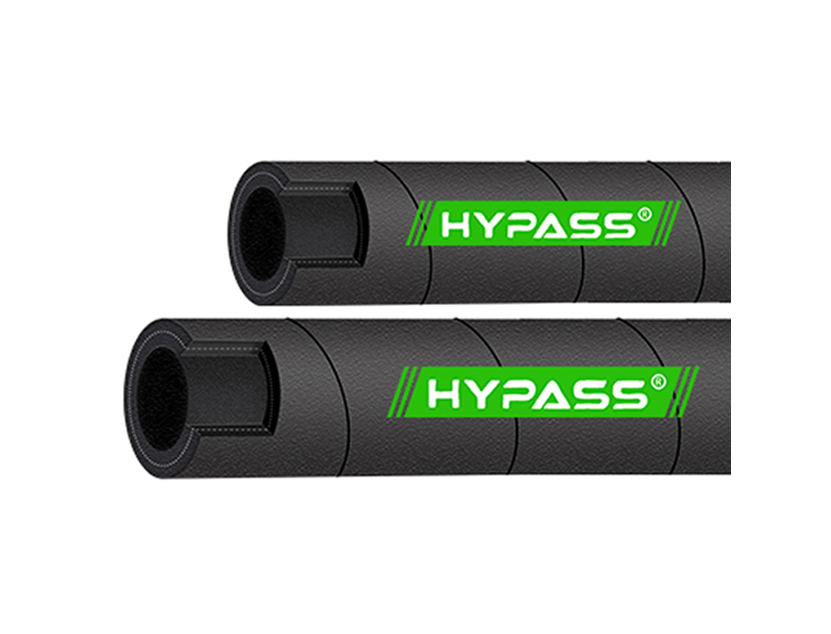

压缩空气软管采用耐老化橡胶一体成型，内层顺滑通气阻力小，中间高强度纤维编织层均匀承载气压，抗压防爆、不易形变，外层耐磨抗剐蹭，耐臭氧耐风化，可在 - 40℃~70℃区间稳定使用，管身柔软易弯折收纳，适配空压机、气动工具、车间设备高压空气输送。
| DN | Inches | I.D (mm) Min | I.D (mm) Max | O.D(mm) | Max.W.P (Mpa) | Min. B.P (Mpa) |
|---|---|---|---|---|---|---|
| 13 | 1/2 | 12.5 | 14.0 | 23.0 | 1.0 | 4.0 |
| 16 | 5/8 | 15.5 | 17.0 | 26.0 | 1.0 | 4.0 |
| 19 | 3/4 | 18.5 | 20.0 | 29.0 | 1.0 | 4.0 |
| 25 | 1 | 24.5 | 26.0 | 35.0 | 1.0 | 4.0 |
| 32 | 1 1/4 | 31.5 | 33.0 | 45.0 | 1.0 | 4.0 |
| 38 | 1 1/2 | 37.5 | 39.0 | 52.0 | 1.0 | 4.0 |
| 51 | 2 | 50.0 | 52.5 | 66.0 | 1.0 | 4.0 |
| 13 | 1/2 | 12.5 | 14.0 | 23.0 | 2.0 | 8.0 |
| 16 | 5/8 | 15.5 | 17.0 | 26.0 | 2.0 | 8.0 |
| 19 | 3/4 | 18.5 | 20.0 | 29.0 | 2.0 | 8.0 |
| 25 | 1 | 24.5 | 26.0 | 35.0 | 2.0 | 8.0 |
| 32 | 1 1/4 | 31.5 | 33.0 | 45.0 | 2.0 | 8.0 |
| 38 | 1 1/2 | 37.5 | 39.0 | 52.0 | 2.0 | 8.0 |
| 51 | 2 | 50.0 | 52.5 | 66.0 | 2.0 | 8.0 |
